Engine Displacement Calculator with Overbore

Bore (\( b \)):

Stroke (\( s \)):

Overbore (\( oB \)):

Number of Cylinders (\( n \)):

Total Displacement (\( V \)) in cubic inches (in³):

Total Displacement (\( V \)) in cubic centimeters (cm³):

Total Displacement (\( V \)) in liters (L):

1. What is the Total Engine Displacement Calculator with Overbore?

Definition: This calculator computes the total engine displacement (\( V \)) of an internal combustion engine, accounting for an overbore, based on the bore (\( b \)), overbore (\( oB \)), stroke (\( s \)), and number of cylinders (\( n \)).

Purpose: It is used in automotive engineering to determine the total volume displaced by the pistons in an engine after an overbore, which is a common modification to increase engine displacement and power.

2. How Does the Calculator Work?

The calculator uses the following relationship:

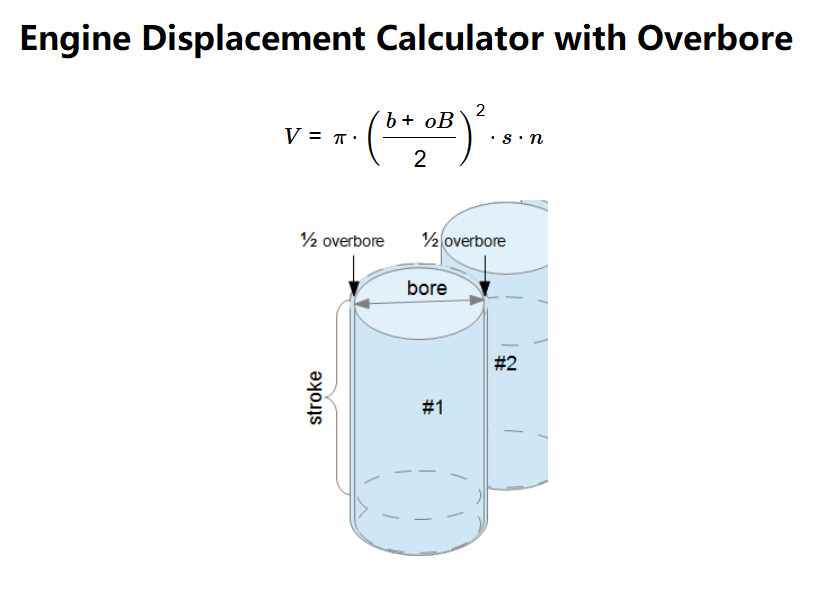

\[ V = \pi \cdot \left( \frac{b + oB}{2} \right)^2 \cdot s \cdot n \]

Where:

\( V \) — Total engine displacement (in cubic inches, cubic centimeters, or liters)
\( b \) — Bore (diameter of the cylinder)
\( oB \) — Overbore (additional bore added to the piston cylinder)
\( s \) — Stroke (length of the cylinder traveled by the piston)
\( n \) — Number of cylinders

Explanation: Enter the bore, stroke, overbore, and number of cylinders in the chosen units, and the calculator computes the total engine displacement. The bore, overbore, and stroke are converted to inches for the calculation. The effective bore is calculated as \( b + oB \), and the displacement is computed in cubic inches, then converted to cubic centimeters and liters for display. Results are displayed with 5 decimal places, using scientific notation if the value exceeds 100,000 or is less than 0.0001. For default inputs (\( b = 3.4 \, \text{in} \), \( s = 3.6 \, \text{in} \), \( oB = 0 \, \text{mil} \), \( n = 8 \)), the calculated displacement is approximately 261.48480 cubic inches, matching the example from the Engine Displacement Calculator.

3. Importance of Total Engine Displacement Calculation with Overbore

Details: Calculating the total engine displacement with an overbore is crucial for understanding an engine's modified power potential, fuel efficiency, and performance characteristics. Overboring increases the bore diameter, which increases displacement and can enhance power output, often used in performance tuning and racing applications.

FAQ

How do I find the total engine displacement with overbore?

Measure the bore (\( b \)), overbore (\( oB \)), and stroke (\( s \)) in inches, and determine the number of cylinders (\( n \)). Compute the displacement using the formula \( V = \pi \cdot \left( \frac{b + oB}{2} \right)^2 \cdot s \cdot n \). The result will be in cubic inches.

What does total engine displacement represent?

Total engine displacement (\( V \)) represents the total volume displaced by all the pistons in an engine's cylinders during one complete cycle, typically measured in cubic inches, cubic centimeters, or liters.

What is the formula for total engine displacement with overbore?

The formula for total engine displacement with overbore is \( V = \pi \cdot \left( \frac{b + oB}{2} \right)^2 \cdot s \cdot n \), where \( b \) is the bore, \( oB \) is the overbore, \( s \) is the stroke, and \( n \) is the number of cylinders. The standard unit for displacement in this calculator is cubic inches.

Can I use different units for bore, overbore, and stroke?

Yes, the calculator supports multiple units for bore and stroke (inches, centimeters, millimeters, meters, feet) and overbore (mils, millimeters, inches). All inputs are converted to inches for the calculation.

What happens if I enter zero for bore, stroke, or number of cylinders?

Entering zero for bore (\( b \)), stroke (\( s \)), or number of cylinders (\( n \)) will result in the calculation not being performed, as these values must be greater than zero for a valid result.
